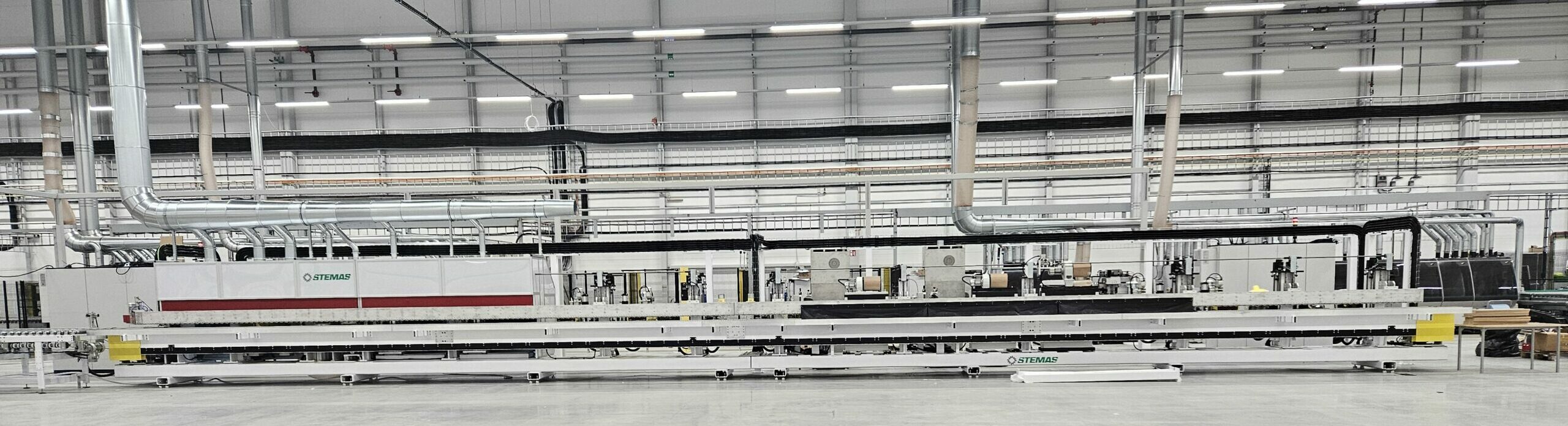

MDF CABINET DOORS - FOUR SIDES LINE
NOBIA (Sweden)
Pre-milling, rounding, sanding, and coating in a single cycle
High-speed production up to 35 m/min
Automatic adjustment to different MDF panel dimensions
Complete machining of all 4 sides of cabinet doors
Increased production capacity without compromising product quality by integrating multiple processes into a single, continuous line:
-
- Pre-milling
- Top & Bottom Rounding
- Vertical Corner Rounding
- Raw Sanding
- Coating
- Intermediate Sanding
Designed to handle a wide variety of MDF door models, this solution delivers maximum flexibility, precision, and full automation.
The line is structured into two key stages, engineered to maximize efficiency and precision throughout the entire process.
-Vertical Sides Processing

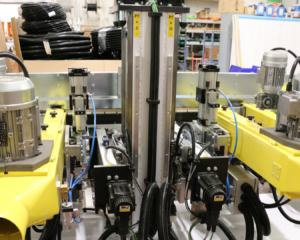

Two independent units work the long sides of the door sequentially, following a fully integrated workflow:
- High-precision edge milling
- Top and bottom rounding
- Uniform raw sanding with chip removal
- Coating and final intermediate sanding

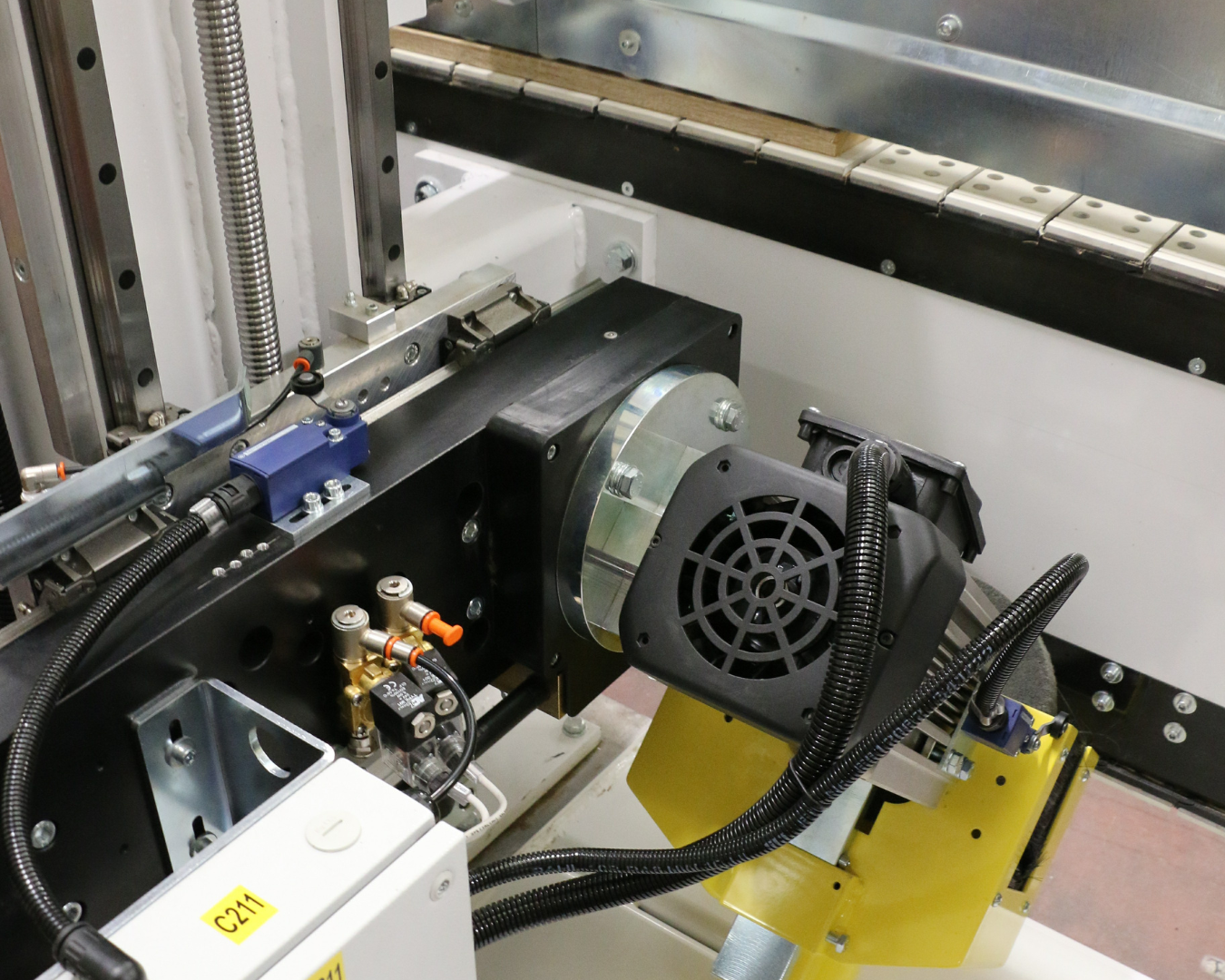

The second unit is CNC-controlled and fully movable, allowing automatic adaptation to different panel sizes without manual adjustments or downtime.
-Horizontal Sides Processing

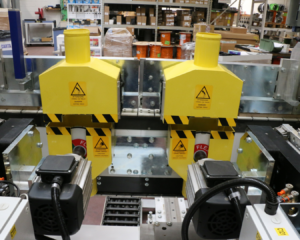

A third unit is positioned right after the vertical sides working units.
It works on both short sides of the door simultaneously:
- Full process replication + vertical corner rounding
This enables the complete machining of the furniture door in a single continuous flow, with no interruptions between stages.
✔ Uninterrupted production
All processes are integrated into one continuous line, eliminating intermediate handling.
✔ Maximum pre-milling precision
Exceptional accuracy on edges and corners, even with diverse profiles, thanks to the movable unit.
✔ Total flexibility
Automatic adaptation to different door sizes and formats.
✔ Reduced time and costs
Fewer machines, fewer operators, and fewer errors.
✔ Superior finishing quality
Surfaces are fully sanded and coated ready for assembly, with no rework required.
• Design ready for future upgrades and expansions
• Easy integration into existing production lines
• Fully customizable to meet specific customer requirements

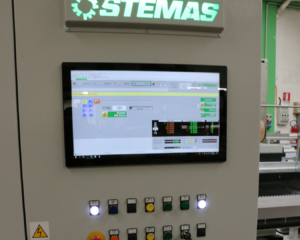

• Full automation with part tracking capabilities, thanks to advanced CNC automation:
– All axes adjust in real time
– Precision is maintained even during format changes
– Human error is eliminated
